Electrical 0.7kg Transformer Porcelain Bushing Silicone Rubber 250A BS Standard

Brand Name : YC

Model Number : ANSI

Certification : ISO 9001, ISO 14001, OHSAS 18001

Place of Origin : Hebei, China

MOQ : 1 piece

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-10 work days

Packaging Details : Standard package

Name : ANSI Standard Electrical Transformer Silicone Rubber Bushing

Rated voltage : 1KV, 3KV

Dimensions : Customized approved

Application : Insulation protection

Usage : Power transformers

Rated current : 250A

Type : Insulator

Color : White, brown

Contact Now

ANSI Standard Electrical Transformer Silicone Rubber Bushing

Description

Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.

Code	Type-voltage/current (KV/A)	Dimensions (mm)							Tank hole (D0)	Weight
Code	Type-voltage/current (KV/A)	A	B	C	D	D1	D2	D3	Tank hole (D0)	(kg)
YC.286.2530.1	1KV/250A	138	68	25	M12	Φ50	Φ60	Φ50	28	0.7
YC.286.2530.1	1KV/630A	178	82	37	M20	Φ70	Φ85	Φ70	45	2

Features

Name	ANSI Standard Electrical Transformer Silicone Rubber Bushing
Model	ANSI EN DIN standard
Sample	Yes
Application	Electrical energy, electrical installation, power transmission and distribution
Condition	Power transformer and distribution transformer
Professional	We are profession in producing transformer bushings more than 20 years.
Surface treatment	As per customer specification or requirement
Dimensions	We provide customized size & follow clients idea and design
Color	White or customized
Note	Please let’s know the size, quality, material, grade or target price if it is special nonstandard products and send the drawing and samples to us.

Packaging Details

Inside: bubble sheet;
Outside: carton box.

Our services

Free sample supply
Factory direct price
Timely delivery guaranteed

Property

Excellent heat stability,
Narrow tolerance.

FAQ

Q1: What is your MOQ?

A: Our MOQ is 1 piece.

Q2: Do you offer sample?

A: Yes, we can provide you a sample.

Q3: What is your payment term?

A: 100% TT in advance.

Q4: What is your lead time?

A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!

Q5: Are you a manufacturer or a trader?

A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.

Q6: Can you make the packing and logo as customer request?

A: Yes we can.

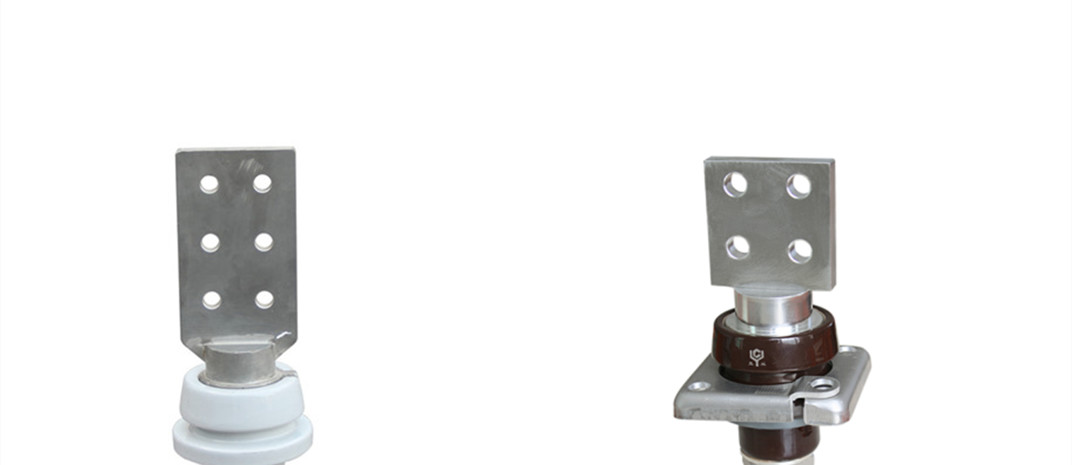

Product picture

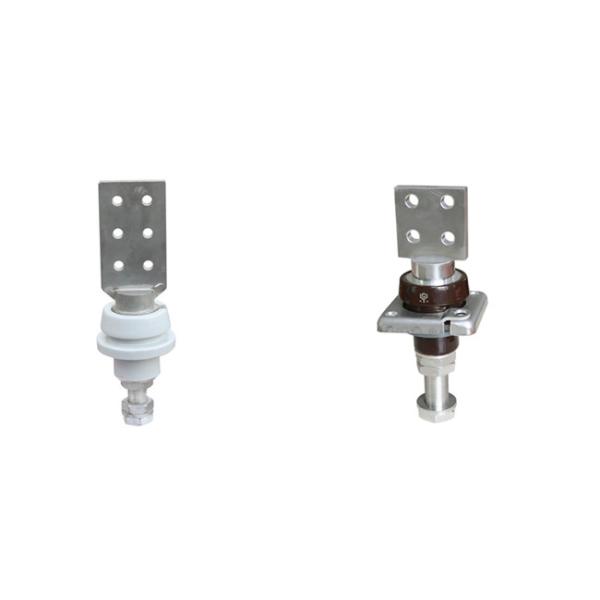

Electrical 0.7kg Transformer Porcelain Bushing Silicone Rubber 250A BS Standard

Product Tags:

BS Transformer Porcelain Bushing

0.7kg Transformer Porcelain Bushing

250A Silicone Rubber Bushing

Electrical 0.7kg Transformer Porcelain Bushing Silicone Rubber 250A BS Standard Images
