Brand Name : YC
Model Number : DIN 1/250
Certification : ISO 9001, ISO 14001, OHSAS 18001
Place of Origin : Hebei, China
MOQ : 1 piece
Price : negotiate
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 10000pcs/month
Delivery Time : 3-10 work days
Packaging Details : Standard package

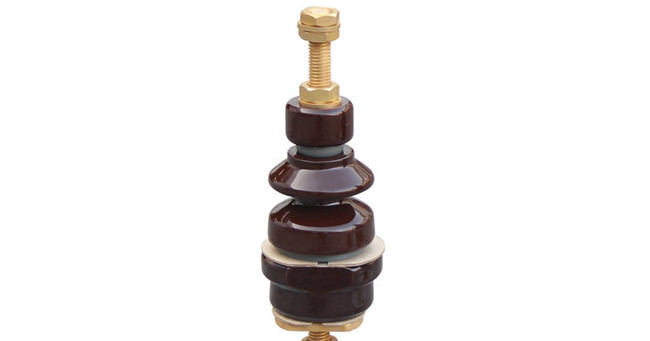

Name : 1KV 250A - 630A Transformer Bushing Porcelain Insulator
Condition : Power transformers
Threading : Standard thread
Dimensions : Customized approved
Weight : 0.7kg
Thread : As per standard and customized
Application : Electrical energy, electrical installation, power transmission and distribution
Color : Brown, white
As a standard product we can offer both DIN standard bushings and the latest EN range of bushings, these product cover the requirements of distribution and power transformer manufacturers. We can offer ratings from 1kV through to 40.5kV and up to 16000A with a wide variety of creepage distances to meet all environmental conditions.
Code | Type-voltage/current (KV/A) | Dimensions (mm) | Tank hole (D0) | Weight | ||||||
A | B | C | D | D1 | D2 | D3 | (kg) | |||
YC.286.2530.1 | 1KV/250A | 138 | 68 | 25 | M12 | Φ50 | Φ60 | Φ50 | 28 | 0.7 |
YC.286.2530.1 | 1KV/630A | 178 | 82 | 37 | M20 | Φ70 | Φ85 | Φ70 | 45 | 2 |
Features
Name | 1KV 250A - 630A Transformer Bushing Porcelain Insulator |
Item | Low Voltage Bushings |
Product specification | Brass components for LV & HV transformer |
Length / Size | We provide customized size & follow clients idea and designs |
Model | ANSI EN DIN standard |
Type | Insulator |
Sample | Approved |
Application | Power Transformer & Distribution Transformer |
Coating and Finishing | Natural, nickel plated, tin plated brass, electro-tin, chrome or any coating as per customer requirements |
Length / Size | We provide customized size & follow clients idea and designs |
Note
Please let’s know the size, quality, material, grade or target price if it is special nonstandard products and send the drawing and samples to us.
