Cylindrical Maintenance Free Breather Transformer Desiccant

Name: Cylindrical Maintenance Free Breather Transformer Desiccant
Brand: Hebei Maier
Price: 1 USD

Brand Name : Hebei Maier

Model Number : MX1

Certification : CE

Place of Origin : Hebei, China

MOQ : 1 piece

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-10 work days

Packaging Details : Standard package

Name : Maintenance-free Desiccant Breather Filter For Transformer Oil Tank

Transformer Type : Power Transformer

Usage : Maintenace-free dehydrating breather

Silica Gel Color : White

Material : Aluminum

Shape : Cylindrical

Country of origin : Hebei, China

Warranty : Five Years

Contact Now

Maintenance-free Desiccant Breather Filter For Transformer Oil Tank

Product Description

The dehydrating breather is used to dry the intake air of transformers.
If the operating temperature of the transformer drops, air will be sucked in through the oil container, cleaned of dirt particles and subsequently dried by the silica gel inside the assembly
The oil trap prevents any permanent contact between the silica gel and the moist ambient air and also filters the inflowing air. If the temperature rises, air is expelled from the conservator and flows through the transformer dehydrating breather type L in the opposite direction. The size of the dehydrating breather which has to be used depends on the oil volume and the frequency of the air exchange.

Model	D (mm)	H (mm)	Silica Gel Wight (kg)	Transformer Capacity of Oil (kg)	Applicable Transformer Capacity (reference value)
MX1-1.5	175	425	1.5	5000	5000KVA under

MX1-3	225	518	3	22000	10000KVA under

MX1-5	225	710	5	35000	50000KVA under

MX1-10	460	750	10	50000	500000KVA under

YOUR BENEFITS AT A GLANCE

Reduces operating costs and increases operational reliability
Actively protects the insulation medium against humidity
Condition-dependent and self-learning algorithm
Significantly higher efficiency than market competitors

FAQ

Q1: What is your MOQ?

A: Our MOQ is 1 piece.

Q2: Do you offer sample?

A: Yes, we can provide you a sample.

Q3: What is your payment term?

A: 100% TT in advance.

Q4: What is your lead time?

A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!

Q5: Are you a manufacturer or a trader?

A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.

Q6: Can you make the packing and logo as customer request?

A: Yes we can.

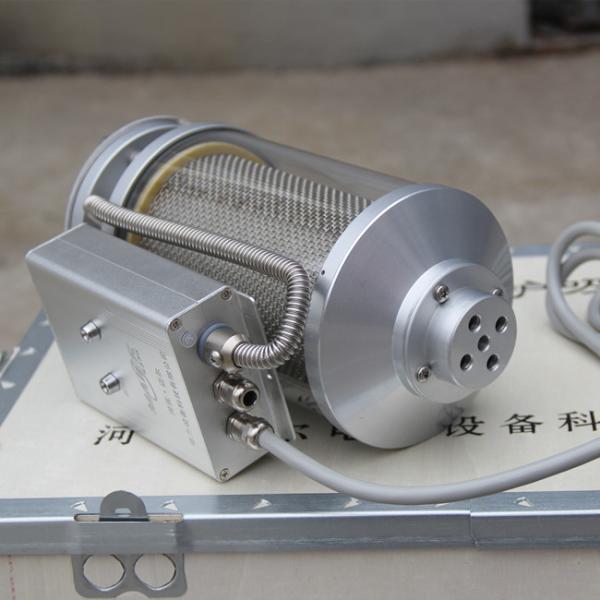

Product picture

Cylindrical Maintenance Free Breather Transformer Desiccant

Product Tags:
