Power Distribution Transformer High Voltage Bushing
Description
Porcelain Transformer bushing / Insulator The transformer bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.
We can supply high and low voltage porcelain bushing insulator according to ANSI, IEC, BS, AS and GB standard, or customer's special requirement. We can offer the insulator with semi-conduct glaze and semi-conduct painting.
1).Can be manufactured according to GB and IEC,others such as ANSI, BS, AS, JIS , DIN ,etc.
2).Appearance is sparkling,and glittering ,fell smooth and flat
3).The mechanical and electrical performace is reliable
| Code | Type-voltage/current (KV/A) | Dimensions (mm) | Tank hole (D0) | Weight |
| (kg) |
| A | B | C | D | D1 | D2 | D3 | E | | |
| YC.286.2530.3 | 1KV/1000A | 263 | 60 | 28 | M30*2 | Φ90 | Φ110 | Φ90 | 10 | Φ56 | 4.9 |
| YC.286.2530.4 | 1KV/2000A | 340 | 65 | 40 | M42*3 | Φ104 | Φ125 | Φ104 | 15 | Φ70 | 11.7 |
| YC.286.2530.5 | 1KV/3150A | 372 | 70 | 45 | M48*3 | Φ125 | Φ150 | Φ125 | 15 | Φ90 | 15.8 |
Packaging&Shipping
Packaging: Wooden case, container or according to client's requirements
Shipping: Land transportation and Ocean transportation.
Our services
1. Free sample supply
2. Factory direct price
3. Timely delivery guaranteed
This Porcelain Transformer bushing insulators has very good quality and excellent capability.
Application
Mainly for oil transformer.
FAQ
Q1: What is your MOQ?
A: Our MOQ is 1 piece.
Q2: Do you offer sample?
A: Yes, we can provide you a sample.
Q3: What is your payment term?
A: 100% TT in advance.
Q4: What is your lead time?
A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!
Q5: Are you a manufacturer or a trader?
A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.
Q6: Can you make the packing and logo as customer request?
A: Yes we can.

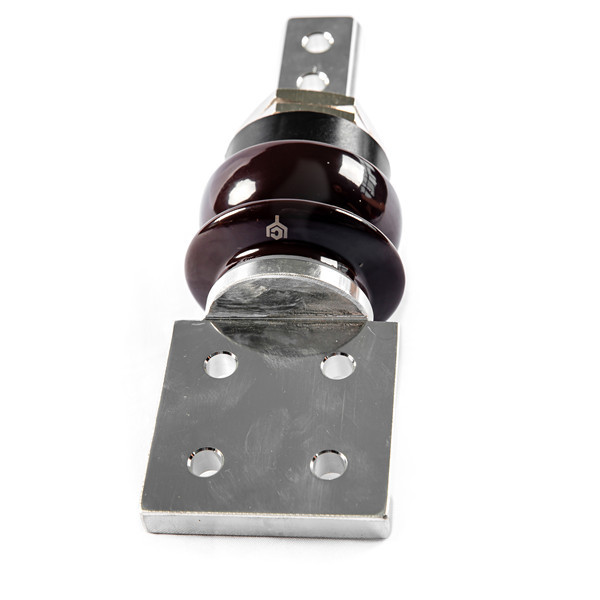

Product picture
Product Tags:
|
|
Insulation 2000A High Current Low Voltage Bushing For Power Transformer Images
|
